Multi-Bus Data Transmission in Engine Monitoring Units

Abstract

#

The safety and efficiency of modern aircraft engines rely heavily on continuous monitoring and data acquisition. The Engine Monitoring Unit (EMU) plays a central role by communicating with sensors, controllers, and ground systems through multiple communication buses. This article explores the implementation of multi-bus data transmission in EMUs, focusing on ARINC429, RS422/RS485, and Ethernet. We analyze their hardware integration, data transfer mechanisms, and rate adjustment strategies, while also discussing future directions for optimization and system evolution.

Keywords

#

Engine Monitoring Unit; ARINC429; RS422/RS485; Ethernet; ARINC615A; Data Transmission

Introduction

#

Aircraft engines are often referred to as the “heart” of modern aviation. Their operational status directly impacts both flight safety and efficiency. To ensure reliability, Engine Monitoring Units (EMUs) collect and transmit critical parameters such as speed, vibration, blade tip clearance, and oil debris. These devices rely on multiple bus technologies to communicate with onboard avionics and ground support equipment.

• ARINC429 – widely used for avionics communication. While its data rate is relatively low (12.5 kb/s or 100 kb/s), it is highly reliable and resistant to interference.
• RS422/RS485 – differential standards suitable for noisy environments. RS422 supports point-to-point communication, while RS485 enables multi-node connectivity.
• Ethernet – provides high-bandwidth connections, especially useful for ground maintenance data transfer, diagnostics, and software upgrades.

This article examines how these buses are integrated into a typical EMU architecture and discusses strategies for efficient data transmission.

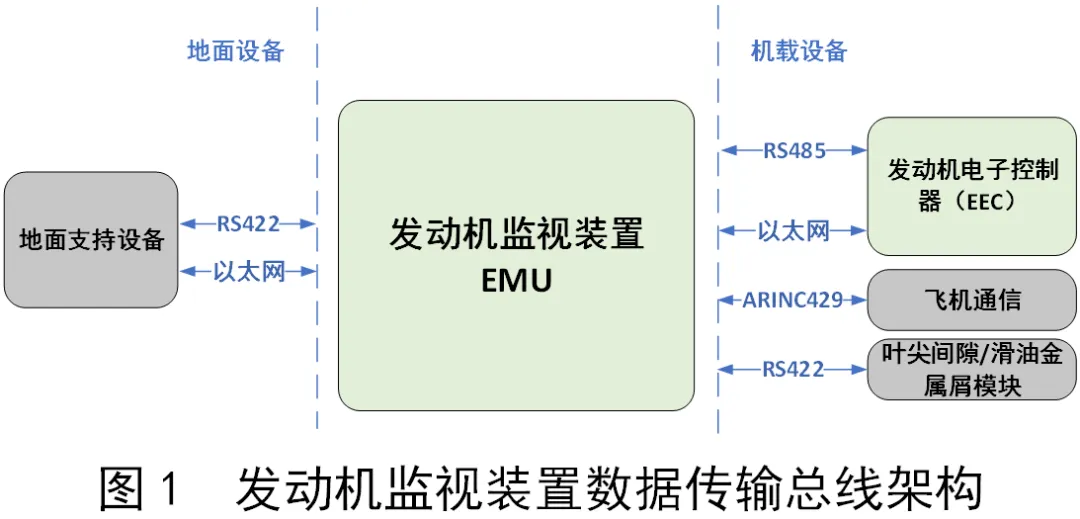

Typical Architecture and Design

#

An EMU typically consists of data acquisition, processing, and storage units. Real-time capability is a key requirement—communication must remain reliable under conditions such as high vibration and electrical noise.

• ARINC429 handles communication with aircraft systems, transmitting low-speed critical status data.
• RS422 connects to sensors for parameters such as oil debris and blade tip clearance.
• RS485 supports communication with the Electronic Engine Controller (EEC), enabling multi-device synchronization.
• Ethernet provides a high-speed channel for ground maintenance, data downloads, and software updates.

Data Transmission Implementation

#

To meet processing and flexibility requirements, a typical EMU design uses the Xilinx Zynq UltraScale+ platform. The ARM Cortex-A53 cores handle real-time data processing, while the FPGA fabric implements custom bus logic such as ARINC429 and RS422/RS485.

Two integration strategies are common:

1. PS-side controllers – using built-in controllers for Ethernet or other standard interfaces.
2. PL-side custom logic – implementing ARINC429 and RS422/RS485 with hardware FIFOs for buffering, coordinated with software drivers via the AXI bus.

This hybrid design balances flexibility, performance, and reliability.

ARINC429 in EMUs

#

ARINC429 is primarily used for exchanging key flight and engine parameters with avionics systems. Its 32-bit word format ensures reliable transmission of critical information, even though its data rate is modest.

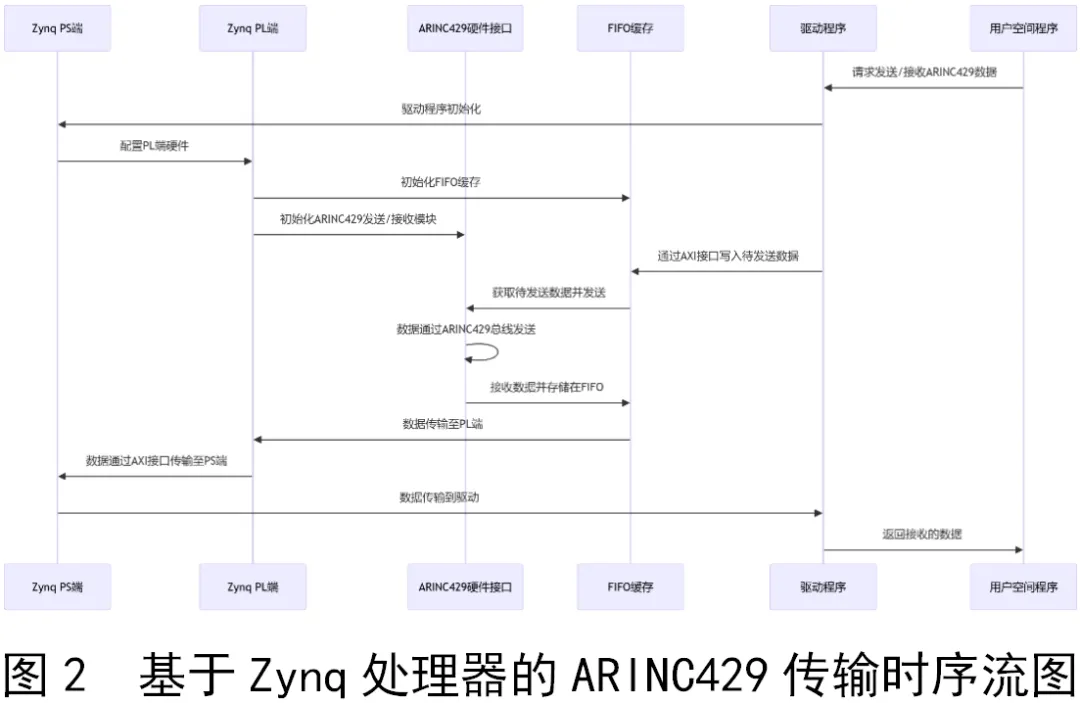

In the Zynq-based implementation:

• Transmit path: Application software requests data → Driver writes to FIFO → PL handles ARINC429 formatting and transmission.
• Receive path: Incoming data stored in FIFO → Retrieved via AXI → Driver passes it to software.

RS422/RS485 in EMUs

#

RS422/RS485 is used for communication with sensors and the EEC:

• RS422 – ideal for point-to-point sensor connections.
• RS485 – supports multi-node networks with half-duplex operation.

The EMU implementation supports baud rates from 9,600 to 921,600, configurable via software to balance bandwidth and reliability under varying load conditions. This adaptability allows the EMU to optimize throughput without sacrificing data integrity.

Ethernet and ARINC615A Software Loading

#

Ethernet provides high-speed connectivity for ground support tasks:

• Data download and diagnostic logs.
• Firmware and software upgrades.

Software updates are performed using the ARINC615A protocol, a standardized aviation software loading mechanism. The process includes:

1. Connection and authentication – secure link establishment with ground equipment.
2. Package validation – version and checksum verification.
3. Transfer – efficient file transfer using TFTP over Ethernet.
4. Integrity check – CRC validation and confirmation.
5. Rollback protection – fallback to previous software if the upgrade fails.
6. System restart – EMU reloads with the new software version.

This ensures upgrades are fast, secure, and resilient, supporting both operational safety and maintainability.

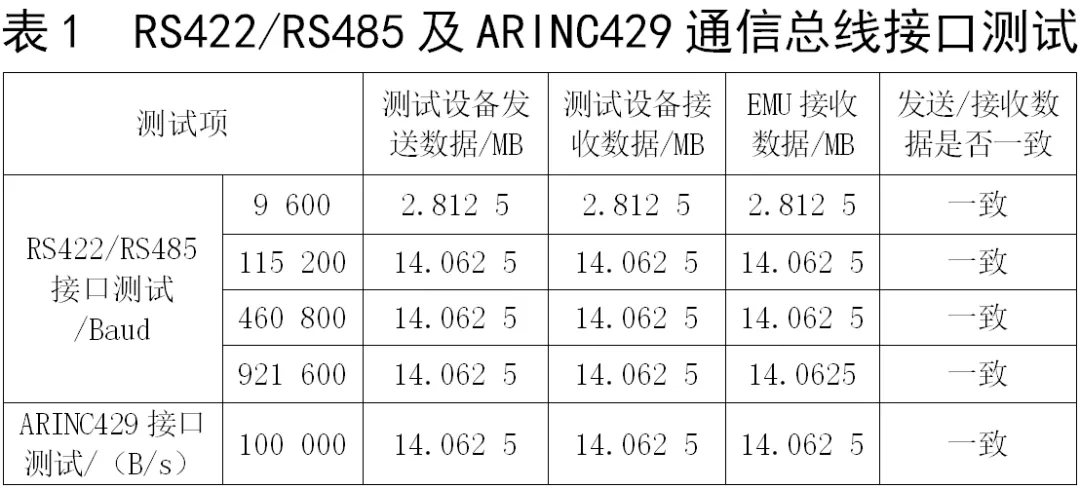

Validation and Testing

#

Unlike Ethernet (handled directly by the processor), ARINC429 and RS422/RS485 rely on FPGA logic. Dedicated tests are conducted:

• Transmission of 2 kB data packets at varying baud rates.
• Long-duration (2-hour) stability tests.
• Verification of no packet loss across different operating conditions.

Results confirm the reliability and stability of the FPGA-based bus implementations. The architecture has been validated extensively in engine test runs.

Conclusion and Outlook

#

This study highlights the role of multi-bus integration in EMUs, covering ARINC429, RS422/RS485, and Ethernet, with special focus on ARINC615A-based software loading. The combination of FPGA flexibility and high-performance processing ensures robust and scalable communication.

Looking ahead:

• Smarter diagnostics may enable EMUs to predict software maintenance needs.
• Automated updates using ARINC615A could reduce manual intervention.
• Integration of AI-based monitoring could further improve predictive maintenance and safety.

By continuously evolving bus integration and software update mechanisms, EMUs will remain a cornerstone of safe, efficient, and maintainable aircraft engine operations.
